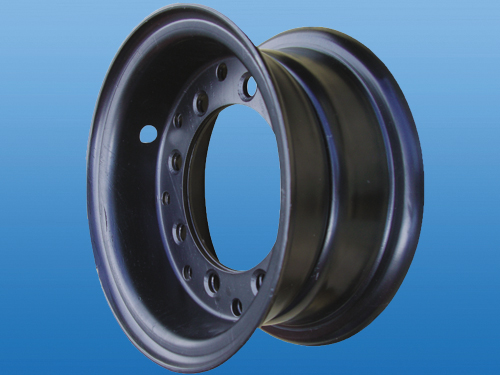

叉车车轮
| 标准规格 |
| Size |
Bolt Hole |
Center Hole (mm) |
Offset (mm) |
Equipped with tyre |
Equipped with vehicle |
| Bolt Number |
PCD (mm) |
Bolt Dia (mm) |
| 5.50F-15 |
6 |
190 |
20.5 |
140.5 |
110 |
7.00-15 |
料厚8cm,6个椭圆风孔 |
| 6.00G-15 |
10 |
225 |
26 |
176 |
123 |
7.50-15 |
底平板车桥 |
| 6.50-10 |
5 |
145 |
15 |
110 |
32 |
23×9-10 |
合力 |
| 6.5-15 |
6 |
220 |
32 |
165 |
77 |
8.25-15 |
靖江、苏叉、大叉5吨后轮 |
| 6.5-20 |
6 |
415 |
32.5 |
355 |
125 |
8.25-20 |
大叉7吨、苏叉5吨前轮 |
| 7.00T-15 |
6 |
200 |
32 |
150 |
77 |
28×9-15 |
合叉、大叉TCM3吨前轮 |
| 7.00T-16 |
5 |
225 |
21.5 |
178 |
0 |
9.00-16 |
/ |
| 7.00T-20 |
8 |
335 |
32.5 |
281 |
30 |
9.0-20 |
合叉8-10吨后轮 |
| 8.00V-15 |
6 |
250 |
32.5 |
200 |
70 |
300-15 |
/ |
| 8.5-20 |
10 |
335 |
23 |
281+0.5 |
33.3 |
12.00-20 |
/ |
| 9.00-15 |
8 |
275 |
24 |
221 |
15 |
315/70-15 |
工程车 |
| 9.75-15 |
10 |
225 |
26 |
176 |
25 |
355/65-15 |
工程车 |
| 10.00-20 |
10 |
335 |
26 |
281 |
70 |
14.00-20 |
工程车 |
| 10.00-24 |
12 |
425 |
24 |
371 |
195 |
14.00-24 |
工程车 |
| 11.00-15 |
10 |
225 |
26 |
175 |
-7 |
22×13-15 |
工程车 |
| 11.00-20 |
9 |
242 |
18 |
202 |
-40 |
15.00-20 |
工程车 |
| 对开式叉车车轮 |
| Size |
Specified Width |
Specified Diameter |
Bolt Hole |
Center Hole (mm) |
Assembly Hole |
Equipped with Tyre |
| Bolt Number |
PCD (mm) |
Bolt Dia (mm) |
No. of Holes |
PCD (mm) |
Dia. (mm) |
| 3.00D-8 |
76 |
202.4 |
6 |
148 |
14.5 |
106 |
6 |
156 |
10.5 |
4.00-8 |
| 3.50D-8 |
89 |
202.4 |
6 |
125 |
15 |
100 |
6 |
160 |
12 |
5.00-8 |
| 3.50W-9 |
90 |
230 |
6 |
166 |
16.8 |
130 |
6 |
166 |
12.5 |
/ |
| 3.70R-9 |
94 |
228 |
6 |
175 |
17 |
140 |
6 |
175 |
15 |
/ |
| 4.00E-9 |
101.5 |
227.8 |
8 |
160 |
16 |
130 |
8 |
185 |
13 |
6.00-9 |
| 4.33R-8 |
110 |
204.4 |
6 |
148 |
13.2 |
128 |
/ |
/ |
/ |
18×7-8 |
| 4.33R-9 |
110 |
227.8 |
6 |
145 |
16.5 |
105 |
6 |
170 |
15.5 |
7.00-9 |
| 4.50E-12 |
114 |
304 |
4 |
170 |
17 |
135 |
9 |
245 |
11 |
5.50-12 |
| 5.00S-9 |
127 |
232.6 |
6 |
170 |
16.5 |
|
 |
